Web UI Guide

Overview

CopilotReportForge includes a browser-based interface for interactive AI chat and parallel report generation. The Web UI is powered by the same Copilot SDK used in CLI and GitHub Actions workflows, providing a consistent experience across all interfaces.

Web UI Architecture

%%{init: {'theme': 'dark'}}%%
flowchart TB
    subgraph Browser["Browser (Single Page)"]
        LOGIN["Login Screen"]
        CHAT["Chat Tab"]
        REPORT["Report Tab"]
    end

    subgraph Server["FastAPI Server"]
        AUTH_EP["OAuth Endpoints<br/>/auth/login, /auth/callback"]
        CHAT_EP["POST /api/chat"]
        REPORT_EP["POST /api/report"]
        SESSION["In-Memory Session Store<br/>(HMAC-SHA256 Signed Cookie)"]
    end

    subgraph External["External Services"]
        GH_OAUTH["GitHub OAuth<br/>(Authorization Server)"]
        GH_API["GitHub API<br/>(/user)"]
        COPILOT["Copilot SDK"]
        LLM["Hosted LLMs"]
    end

    LOGIN -- "Sign in with GitHub" --> AUTH_EP
    AUTH_EP <-- "OAuth code exchange" --> GH_OAUTH
    AUTH_EP <-- "Fetch user info" --> GH_API
    AUTH_EP -- "Set signed cookie" --> SESSION

    CHAT -- "POST /api/chat" --> CHAT_EP
    CHAT_EP -- "Verify session" --> SESSION
    CHAT_EP -- "Send message" --> COPILOT
    COPILOT -- "Query" --> LLM

    REPORT -- "POST /api/report" --> REPORT_EP
    REPORT_EP -- "Verify session" --> SESSION
    REPORT_EP -- "Parallel queries<br/>(asyncio.gather)" --> COPILOT

Key Features

Feature	Description
GitHub OAuth Login	Authenticate with your GitHub identity — no API keys needed
Interactive Chat	Real-time conversational interface with hosted LLMs
Report Panel	Configure and execute parallel multi-query evaluations
Theme Toggle	Switch between light and dark themes
Swagger UI	Built-in API documentation at `/docs`

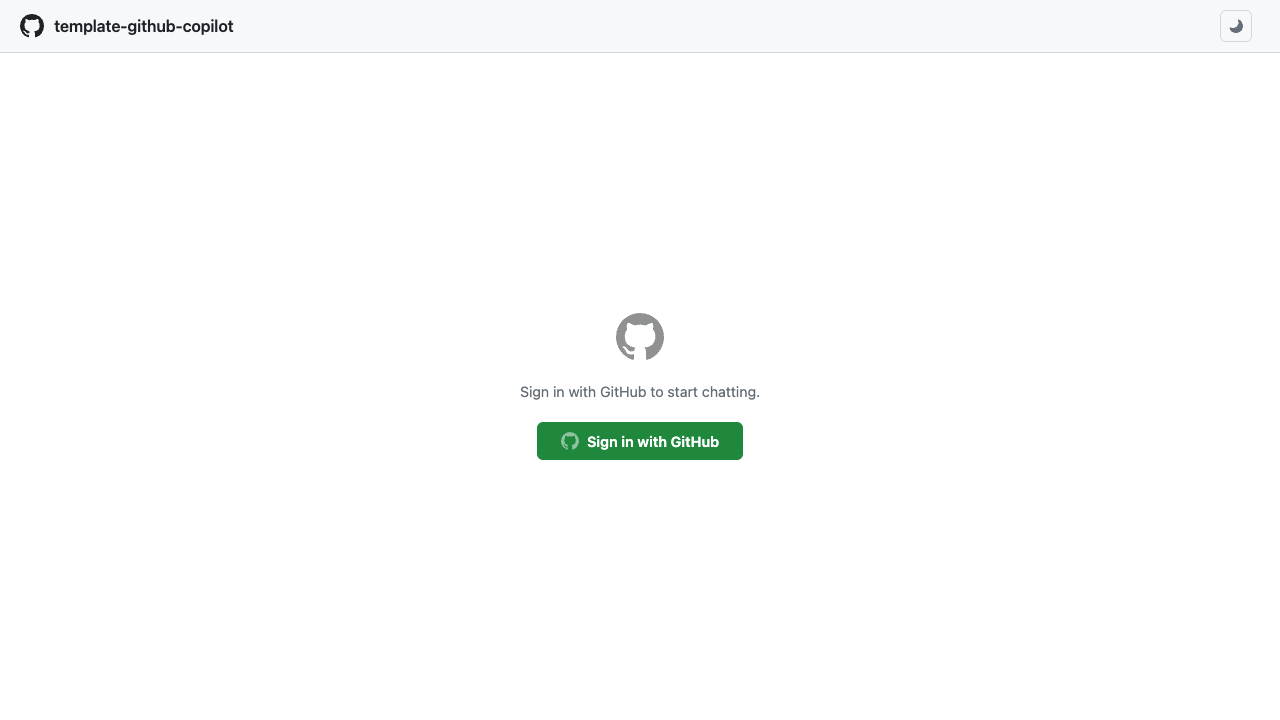

When you open the application, you see a login page with a "Sign in with GitHub" button. Clicking it initiates the GitHub OAuth flow (see GitHub OAuth App Setup).

Login Screen

GitHub OAuth Authentication Flow

%%{init: {'theme': 'dark'}}%%
sequenceDiagram
    participant Browser
    participant Server as FastAPI Server
    participant GitHub as GitHub OAuth
    participant API as GitHub API (/user)

    Browser->>Server: GET /auth/login
    Server->>Server: Generate random state token
    Server->>Server: Create in-memory session
    Server-->>Browser: 302 Redirect to GitHub<br/>(client_id, state, scope=copilot)

    Browser->>GitHub: Authorize application
    GitHub-->>Browser: 302 Redirect to /auth/callback<br/>(code, state)

    Browser->>Server: GET /auth/callback?code=...&state=...
    Server->>Server: Verify state (CSRF protection)
    Server->>GitHub: POST /login/oauth/access_token<br/>(client_id, client_secret, code)
    GitHub-->>Server: access_token (github_token)
    Server->>API: GET /user (Authorization: token)
    API-->>Server: User info (login, avatar_url)
    Server->>Server: Store github_token + user info in session
    Server-->>Browser: 302 Redirect to /<br/>(Set-Cookie: signed session ID)

    Browser->>Server: GET /api/me (Cookie)
    Server->>Server: Verify HMAC-SHA256 signature
    Server-->>Browser: UserInfo (login, avatar)
    Browser->>Browser: Show Chat UI

After successful authentication, you are redirected to the chat interface.

Chat Interface

The chat interface provides a conversational experience with hosted LLMs.

Chat Screen

Element	Description
Message input	Type your prompt and press Enter or click Send
Conversation history	Messages are displayed in chronological order
Model indicator	Shows which LLM model is being used
Clear button	Reset the conversation

Each message creates an independent Copilot SDK session. Responses are streamed in real time.

Chat Communication Flow

%%{init: {'theme': 'dark'}}%%
sequenceDiagram
    participant Browser
    participant Server as FastAPI Server
    participant SDK as Copilot SDK Client
    participant LLM as Hosted LLM

    Browser->>Server: POST /api/chat<br/>{"message": "user text"}
    Server->>Server: Verify signed cookie → get github_token

    Server->>SDK: create_copilot_client(github_token)
    SDK->>SDK: start()
    Server->>SDK: create_session(config)
    SDK-->>Server: Copilot Session

    Server->>SDK: send_and_wait(message)
    SDK->>LLM: Query with user message
    LLM-->>SDK: LLM Response
    SDK-->>Server: Response data

    Server-->>Browser: {"reply": "copilot response text"}
    Browser->>Browser: Append message to conversation

Report Panel

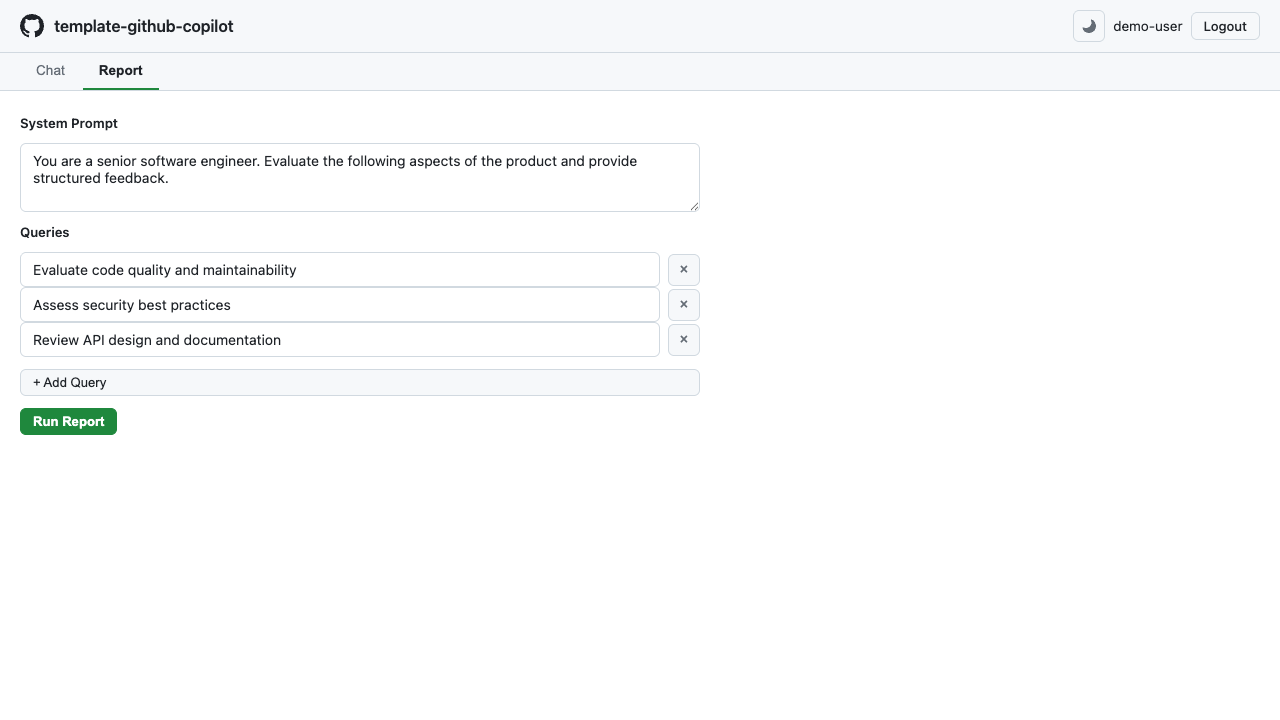

The report panel enables parallel execution of multiple LLM queries with a configurable system prompt.

Report Panel

How to Use

Set the system prompt — Define the AI persona (e.g., "You are a senior architect reviewing system designs")
Enter queries — One per line, each will execute in a separate LLM session
Click Generate — All queries execute in parallel
Review results — Each query shows its response and success/failure status

Report Output

The generated report includes: - Total number of queries executed - Per-query results with success/failure indicators - Aggregated summary - Option to download as JSON

Report Generation Flow

%%{init: {'theme': 'dark'}}%%
sequenceDiagram
    participant Browser
    participant Server as FastAPI Server
    participant SDK as Copilot SDK Client
    participant LLM as Hosted LLM

    Browser->>Server: POST /api/report<br/>{"system_prompt": "...", "queries": ["Q1","Q2","Q3"]}
    Server->>Server: Verify signed cookie → get github_token

    Server->>SDK: run_parallel_chat(queries, system_prompt, github_token)

    par asyncio.gather - Parallel Execution
        SDK->>LLM: Query 1 (with system_prompt)
        LLM-->>SDK: Response 1
    and
        SDK->>LLM: Query 2 (with system_prompt)
        LLM-->>SDK: Response 2
    and
        SDK->>LLM: Query N (with system_prompt)
        LLM-->>SDK: Response N
    end

    SDK->>SDK: Aggregate results<br/>(total, succeeded, failed)
    SDK-->>Server: ReportOutput (JSON)
    Server-->>Browser: ReportOutput<br/>{"total": N, "succeeded": M, "results": [...]}
    Browser->>Browser: Render report with stats

Theme Toggle

Click the theme toggle button (sun/moon icon) in the navigation bar to switch between light and dark modes. The preference is saved in your browser's local storage.

API Documentation

The application includes auto-generated API documentation accessible at:

URL	Interface
`/docs`	Swagger UI — interactive API explorer
`/redoc`	ReDoc — alternative API documentation

Key API Endpoints

Method	Endpoint	Description
`GET`	`/`	Login page
`GET`	`/auth/login`	Initiate GitHub OAuth flow
`GET`	`/auth/callback`	OAuth callback handler
`GET`	`/auth/logout`	Clear session and redirect to login
`GET`	`/api/me`	Return authenticated user info (login, avatar)
`POST`	`/api/chat`	Send a chat message
`POST`	`/api/report`	Generate a parallel report
`POST`	`/api/report/generate`	Generate a report, upload to Azure Blob Storage, and return a SAS URL
`POST`	`/api/report/upload`	Upload an existing report to Azure Blob Storage and return a SAS URL

Running the Web UI

Local Development

cd src/python
export GITHUB_CLIENT_ID="your-client-id"
export GITHUB_CLIENT_SECRET="your-client-secret"
export SESSION_SECRET="a-random-secret-string"
make copilot-api

Then open http://localhost:8000.

Docker

cd src/python
docker compose up --build

See Running Containers Locally for detailed container usage.
